Scraping

Xpaths make this pretty easy. Cheers then xpaths.

The first thing we can scrape is a table that is boring to look at, but is useful to identify participants of a conversation.
Any thread with more than 2 participants is a group thread. The rest of the analysis can be done grouped by thread to keep that separation.

I tried a couple of htmlwidgets options to display this table but they didn’t work instantly (and my god iframes are ugly). This actually looks fine though, in my opinion.

dt_participants[, .(thread, n_people, convo)] %>%
  head(10)

##     thread n_people   convo
##  1:      1        2 private
##  2:      2        2 private
##  3:      3        2 private
##  4:      4        8   group
##  5:      5        4   group
##  6:      6       10   group
##  7:      7        2 private
##  8:      8        2 private
##  9:      9        8   group
## 10:     10        2 private

It’s then easy to use xpaths to grab the few fields offered to us

• The sender of the message
• The meta (which is just the timestamp without seconds)
• The actual message

And the nice table we’re left with is…

dt %>%
    `[`(sample(1:.N, 20), -"message") %>%
    `[`(, id := 1:.N) %>%
    `[`(, .(thread, year, timestamp, user = strsplit(user, " ")[[1]][1], message = "hidden"), id) %>%
    head(10)

##     id thread year           timestamp     user message
##  1:  1    511 2012 2012-12-28 01:36:00    Hanna  hidden
##  2:  2     58 2013 2013-08-01 13:36:00    Akhil  hidden
##  3:  3    258 2015 2015-09-14 22:03:00     Biyi  hidden
##  4:  4    500 2012 2012-06-28 00:14:00    Akhil  hidden
##  5:  5     21 2013 2013-03-13 22:26:00    Akhil  hidden
##  6:  6    485 2014 2014-11-03 19:37:00      Joe  hidden
##  7:  7    557 2016 2016-09-21 22:46:00    Akhil  hidden
##  8:  8    258 2013 2013-08-26 02:07:00    Akhil  hidden
##  9:  9    514 2015 2015-03-01 12:08:00 Caroline  hidden
## 10: 10    357 2011 2011-08-16 20:01:00    Akhil  hidden

You may note that I have removed my messages. If anyone wants to offer up anything they actually wrote back in 2009, be my guest.

Users

This bit was extremely annoying as I had to actually do something by hand, which involved aliasing everyone who has changed their name. I also matched up the facebook IDs to the standardised name by hand as I was already going in. I did this for the top 100 people I spoke to overall, and also the top 20 people who I spoke to per year.

• Top 100 people: dt[, .N, user][order(-N)][1:100]
• Top 20 per year: dt[, .N, .(year, user)][order(-N), head(.SD, 20), year]

People who were quite interesting to me here were people who I’d only frequently spoken to in 1 or 2 years. That’s not to say my #dayones aren’t interesting.

Appendix

#########################################################
# Setup and helper functions                            #
#########################################################

libs = c(
  "data.table", "XML", "purrr", "magrittr", "tibble", "tidytext", "ggplot2"
)

sink = sapply(libs, purrr::quietly(library), character.only = TRUE)

# A colour palette from https://www.r-bloggers.com/the-paul-tol-21-color-salute/
palette = c(
  "#771155", "#AA4488", "#CC99BB", "#114477", "#4477AA", "#77AADD", "#117777",
  "#44AAAA", "#77CCCC", "#117744", "#44AA77", "#88CCAA", "#777711", "#AAAA44",
  "#DDDD77", "#774411", "#AA7744", "#DDAA77", "#771122", "#AA4455", "#DD7788"
)
# I like it better shuffled as I'm red/green colour deficienct
palette = sample(palette, length(palette), replace = FALSE)

# Some random helpers
fmt_time = "%A, %B %d, %Y at %I:%M%p"
split_people = function(people) strsplit(people, ", ")[[1]]

# The basic table
make_dt = function(i, u, t, m) {
  data.table(thread = i, user = u, timestamp = t, message = m)
}

#########################################################
# Scraping initial threads from the HTML                #
#########################################################

# Read in the whole messages htm file
html = XML::htmlTreeParse(
  "~/blog/blogdown_data/2017-05-27-facebook-message-analysis_files/messages.htm",
  useInternalNodes = TRUE
)
# Scrape the threads
threads = XML::xpathSApply(html, '/html/body/div/div/div[@class="thread"]')

# Thread metadata
l_participants = lapply(threads, xpathSApply, 'text()', xmlValue)
# Splits comma seperated lists of people
l_participants = lapply(l_participants, split_people)
# Store these in a nested table for neatness
l_participants = purrr::map2(
  seq_along(l_participants), l_participants,
  .f = ~tibble(thread = .x, people = list(.y))
)
dt_participants = purrr::reduce(l_participants, dplyr::bind_rows)
dt_participants = dt_participants %>%
  dplyr::rowwise() %>%
  dplyr::mutate(n_people = length(people)) %>%
  dplyr::mutate(convo = ifelse(n_people == 2, "private", "group")) %>%
  setDT()

dt_participants[, .(thread, n_people, convo)] %>%
  head(10)

#########################################################
# Scraping each message within the thread's context     #
# I used a save/load cheat to not have to rerun this    #
#########################################################

# xpaths
xpath_user = './div/div/span[@class="user"]'
xpath_meta = './div/div/span[@class="meta"]'
xpath_msg = './p'

# Any field with useful info
l_users = lapply(threads, xpathSApply, path = xpath_user, xmlValue)
l_meta  = lapply(threads, xpathSApply, path = xpath_meta, xmlValue)
l_msg   = lapply(threads, xpathSApply, path = xpath_msg,  xmlValue)

# Bind into table retaining thread info
# Cast the timestamp
dt = pmap(.l = list(seq_along(l_users), l_users, l_meta, l_msg), make_dt)
dt = rbindlist(dt)
dt[, timestamp := as.POSIXct(strptime(timestamp, format = fmt_time))]

# Somehow this first one is wrong. Not worth finding out why
dt = dt[order(timestamp)][-1]
dt[, year := lubridate::year(timestamp)]

# Is the message to a group?
dt = dt_participants[, .(thread, convo)][dt, on = "thread"]
# save(dt, file = "~/blog/blogdown_data/2017-05-27-facebook-message-analysis_files/dt.rda")
# load(    file = "~/blog/blogdown_data/2017-05-27-facebook-message-analysis_files/dt.rda")

dt %>%
    `[`(sample(1:.N, 20), -"message") %>%
    `[`(, id := 1:.N) %>%
    `[`(, .(thread, year, timestamp, user = strsplit(user, " ")[[1]][1], message = "hidden"), id) %>%
    head(10)

#########################################################

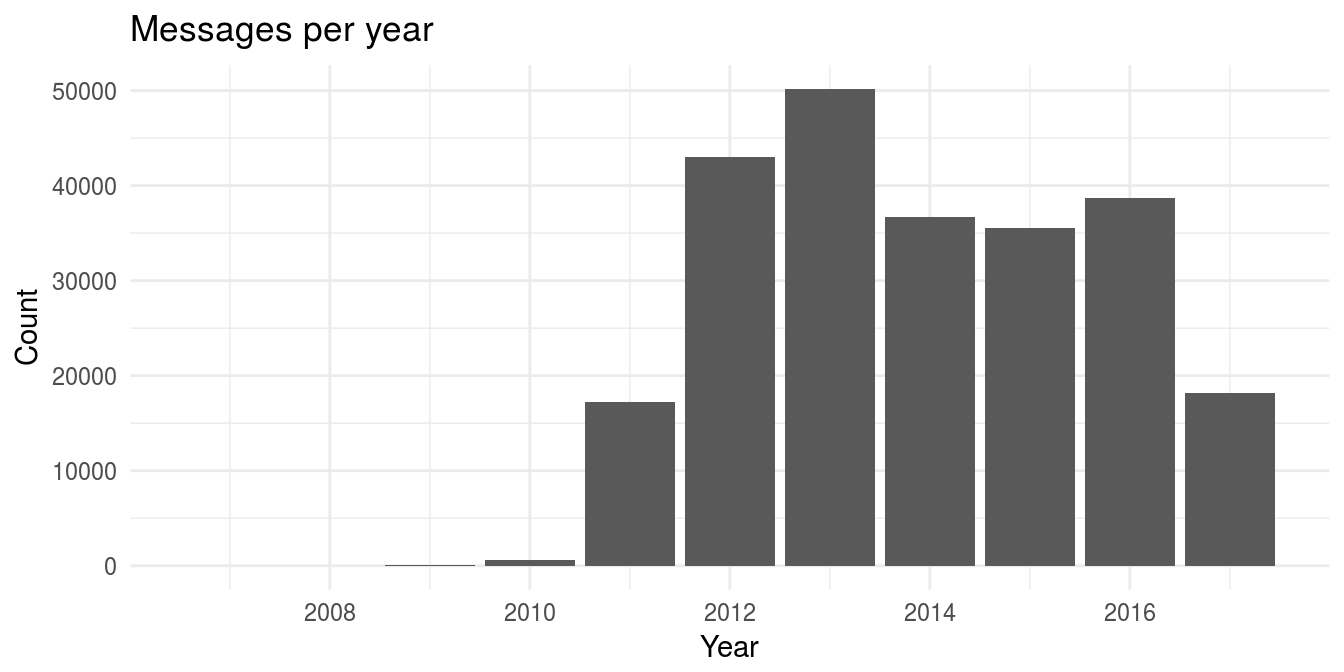

# Quick plot messages per year                          #
#########################################################

qplot(year, N, data = dt[, .N, year],
      geom = "col",
      main = "Messages per year", xlab = "Year", ylab = "Count") +
  theme_minimal()

#########################################################
# Scrape out messy names to manually fix in csv         #
#########################################################

# Sadly you have to edit this csv by hand for best results of combining aliases
# I could ping Facebook but given I have to manually change nicknames I did the
# top 100 on the csv which took ~5 mins
dt_users = dt[, .N, user][order(-N)]
dt_users[, url := stringr::str_extract(user, "[0-9]+")]
dt_users[, url := paste0("www.facebook.com/", url)]
dt_users %>% write.csv("~/blog/blogdown_data/2017-05-27-facebook-message-analysis_files/names.csv")

# Join on the aliases so I can group people messages from the same people
# Only use first name in plots incase any m8s don't want their full name shown
dt_users = fread("~/blog/blogdown_data/2017-05-27-facebook-message-analysis_files/names_edit.csv")
dt_users[, display_name := strsplit(name, " ")[[1]][1], V1]
dt_users[stringr::str_detect(display_name, "@facebook"), display_name := "Deleted"]
dt = dt_users[, .(user, name, display_name)][dt, on = "user"]

#########################################################
# Plot to show who I spoke to most per year             #
#########################################################

# Look at most talked to people per year
dt_per_year = dt[name != "Akhil Nair", .N, .(convo, year, display_name, name)][order(year, -N), head(.SD, 20), .(year)]
dt_per_year = dt_per_year[year > 2008]
dt_per_year[, year := factor(year, levels = 2009:lubridate::year(Sys.Date()))]
dt_per_year = dt_per_year[, .(Infrequent = .N), name][Infrequent < 3][dt_per_year, on = "name"]
dt_per_year[, Infrequent := !is.na(Infrequent)]
dt_per_year[, Infrequent := ifelse(Infrequent == TRUE, "True", "False")]
dt_per_year[, convo := factor(convo, levels = c("group", "private"))]

# Already we can see a fun graph
ggplot(dt_per_year) +
  geom_col(
    aes(
      x = reorder(display_name, -N),
      y = N,
      fill = Infrequent,
      alpha = convo
    )
  ) +
  theme_minimal() +
  theme(
    text = element_text(size = 16),
    axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.5)
  ) +
  facet_wrap(~year, scales = 'free', ncol = 2) +
  labs(
    title = 'Most common people per year',
    x = 'Name',
    y = 'Count'
  ) +
  scale_fill_manual(values = c("steelblue", "#666666")) +
  scale_alpha_discrete(range = c(0.5, 1))

#########################################################
# Plot to show how I spoke to people through the years  #
#########################################################

label_names = dt_users[, display_name]
names(label_names) = dt_users[, name]

# How else do you readably chain data.table...?
idx_known4years = dt_per_year %>%
  `[`(, .(name, year)) %>%
  unique() %>%
  `[`(, .N, name) %>%
  `[`(N > 4, name)

ggplot(dt_per_year[name %in% idx_known4years]) +
  geom_col(
    aes(
      x = year,
      y = N,
      alpha = convo
    ),
    fill = "steelblue"
  ) +
  theme_minimal() +
  theme(
    text = element_text(size = 16),
    axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.5)
  ) +
  facet_wrap(~name, scales = 'free', ncol = 2,
             labeller = as_labeller(label_names[names(label_names) %in% idx_known4years])) +
  labs(
    title = 'Most common people per year',
    x = 'Name',
    y = 'Count'
  ) +
  scale_alpha_discrete(range = c(0.5, 1)) +
  scale_x_discrete(drop = FALSE)

#########################################################
# Plot I was working on when I got bored                #
#########################################################

idx_user = dt[, .N, name][order(-N)][1:21, name]
dt[, convo := factor(convo, levels = c("group", "private"))]

ggplot(dt[name %in% idx_user][name != "Akhil Nair" & year >= 2010]) +
  geom_histogram(aes(x = timestamp, fill = display_name, alpha = convo),
                 binwidth = 60 * 60 * 24 * 14) +
  facet_grid(name ~ ., scale = "free_y", space = "free_y",
             labeller = as_labeller(label_names[names(label_names) %in% idx_user])) +
  theme_minimal() +
  theme(
    text = element_text(size = 16),
    strip.text.y = element_text(angle = 0),
    axis.text.y = element_blank(),
    legend.position = "none"
  ) +
  labs(
    x = "Time",
    y = "Message Count",
    Title = "Facebook Messages sent since I got Facebook Messenger",
    subtitle = "Top 20 people shown"
  ) +
  scale_fill_manual(values = palette) +
  scale_alpha_discrete(range = c(0.5, 1))
